Real Production DTF In Factory

A real factory DTF (Direct-to-Film) process is highly automated, designed to maximize output while ensuring consistent quality. It's less about manual labor and more about managing an integrated workflow where film, ink, powder, and heat work together seamlessly.

Here’s a breakdown of what this looks like on the factory floor.

The 5-Step Industrial DTF Workflow
While the basic principle of DTF remains the same, the industrial process differs significantly from a small-shop setup due to its scale, speed, and integration.

Step 1: Design & File Preparation
Before a machine even starts, designs are prepped in professional RIP software. This stage is crucial for efficiency in a factory. Designs are often digitally "nested" into gang sheets to maximize film usage, and batch processing queues up hundreds of different jobs to run back-to-back with minimal operator intervention .

Step 2: Industrial Printing (Roll-to-Roll)
This is the most visible difference. Instead of single sheets, factories use high-speed, wide-format printers (e.g., 60 cm to 1.6 m wide) fed from 500m jumbo rolls of PET film .

High-Speed Heads: Printers are equipped with multiple industrial printheads (like 7 Epson i3200 heads) to achieve speeds of up to 60 m² per hour .

Vibrant Color: A 9-color system (CMYK + Orange, Red, Green, Blue, White) is common to hit Pantone-accurate colors for brand work .

Automated Handling: The printer features pneumatic shaft feeding and rewinding systems to manage the heavy rolls and maintain tension so the film doesn't wrinkle .

Step 3: Automated Powdering & Curing (The "Shaker and Baker")
In a factory, you won't see anyone manually shaking powder. The printed film feeds directly into an integrated shaker oven.

Powder Application: The unit automatically shakes a fine, even layer of hot-melt adhesive powder onto the wet ink. It then vacuums up and recycles any excess powder .

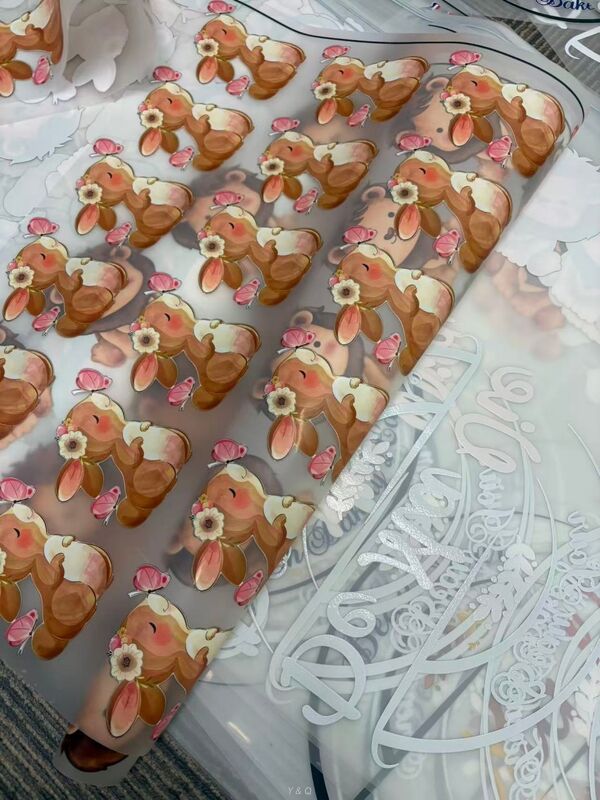

Curing (Melting): The film immediately passes through a heated tunnel (around 160-180°C) where the powder melts and fuses with the ink, turning into a solid, dry glue layer . It exits the other side as a "ready-to-press" transfer, rolled back up or cut into sheets.

Step 4: Mass Transfer to Garments
Applying the transfer is also heavily automated to keep up with the printed film output.

Robotic Heat Presses: Factories use automated carousel systems (e.g., 8-station) with robotic loaders and peelers. These machines can process up to 400 garments per hour with minimal human help .

AI Assistance: Some systems use AI-assisted vision to help position the film on the garment perfectly every time .

Pressing: The machine applies high pressure and heat (approx. 160-170°C for 15-20 seconds). Depending on the film type, the carrier is peeled off either hot or cold .

Step 5: Post-Processing & Finishing
Even after pressing, the process isn't done. For premium quality, garments might go through a final "post-press" for a few seconds to lock in wash durability. The transfer film is discarded, and the finished shirt is folded, inspected under good lighting, and packed for shipping .

 Deep Dive: Powder Is the Secret Sauce
You might wonder why factories don't skip the powder step. According to ink chemistry experts, the traditional powder method is not a flaw but a feature of DTF's success .

Why Powder Wins: It efficiently deposits a thick, high-solids adhesive layer that is critical for bonding strength, flexibility, and surviving multiple washes.

The Powderless Myth: While "powderless DTF" sounds innovative, it replaces simple powder with expensive liquid adhesives that require extra printheads and complex drying systems. For actual industrial production, traditional powder remains more reliable and cost-effective

Key Factory Advantages vs. Small Shop
Labor: A factory might use 80% less manual labor because robots handle pressing and peeling .

Waste: Roll-to-roll systems print continuously with no gaps between sheets, maximizing film usage compared to pre-cut sheets .

Consistency: Automated systems don't get tired, so the 1,000th shirt looks exactly like the first one.

I hope this gives you a clear picture of how DTF works at an industrial scale. Are you curious about the specific setup costs or the software needed to run these machines?

Essential Factory Equipment
To run a real production floor, you need more than just a printer. The setup usually includes:
